Water Heater Leaking? Essential Homeowner Checklist

• Minute 0 to 3: Kill the Power and Shut Off the Cold Water Supply
• Pinpointing the Source: Top Connections, T&P Valve, or Bottom Tank Rupture
• Safe Tank Draining Protocol: Emptying 50 Gallons Safely
• The Shenandoah Valley Hard Water Factor: Karst Limestone & Tank Corrosion
• Expert Insight: Repair vs. Replace Decision Matrix & Virginia Plumbing Codes
• Choosing Your Replacement: Bradford White Standard vs. High-Efficiency Tankless

Minute 0 to 3: Kill the Power and Shut Off the Cold Water Supply

Discovering water pooling around the base of your water heater requires fast action. A 40- or 50-gallon residential tank holds tremendous thermal and hydraulic energy under 60 to 75 PSI of domestic water pressure. Your first actions prevent electrical fires and stop hundreds of gallons of continuous water feed.

• Electric Water Heaters: Immediately walk to your main electrical panel and switch off the dedicated 240-volt double-pole circuit breaker labeled 'Water Heater'. Never touch a puddle of standing water around an energized electric water heater.
• Gas Water Heaters: Locate the gas control valve on the lower front of the tank. Turn the temperature dial down to 'PILOT' or rotate the gas shutoff valve clockwise to 'OFF' to prevent burner cycling.

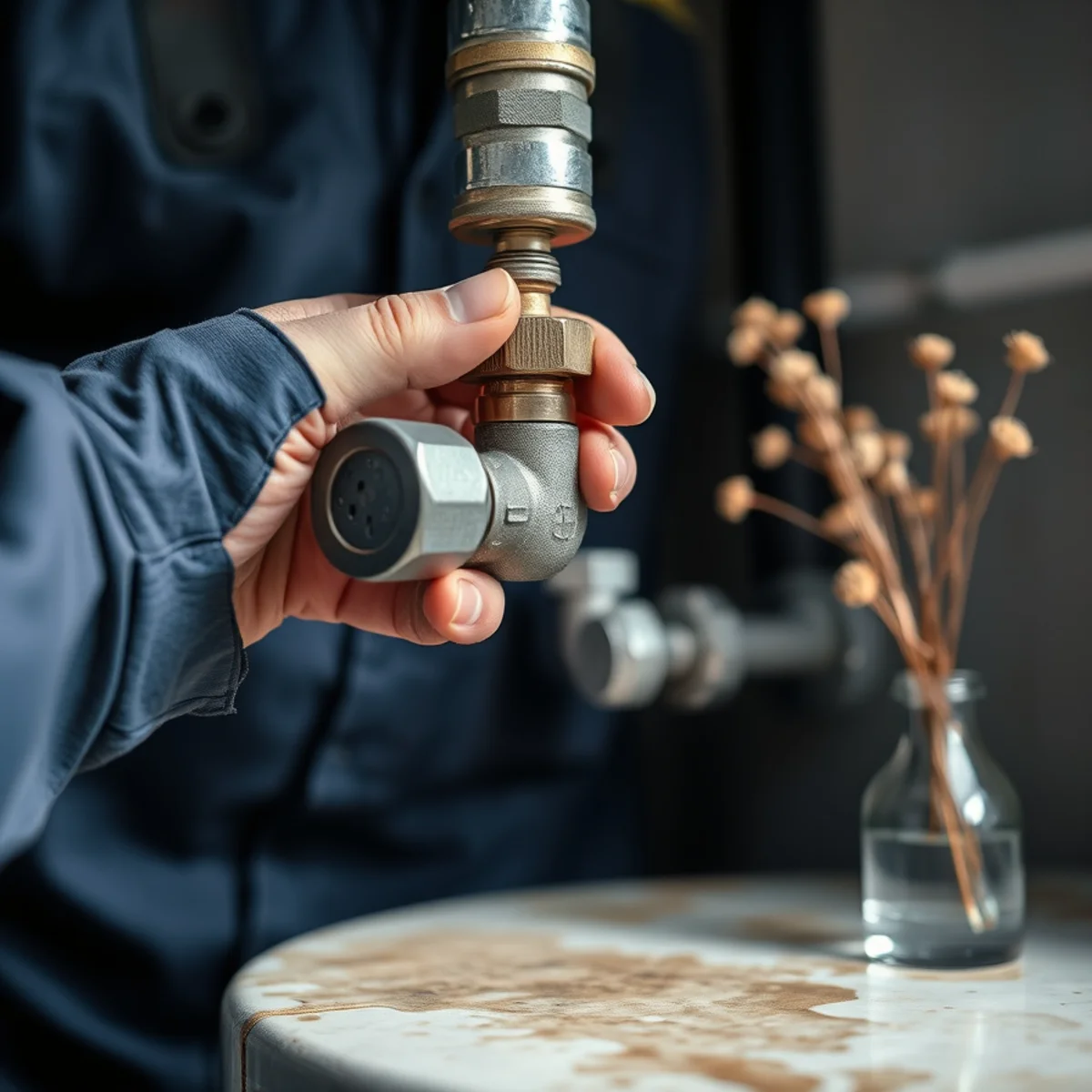

• Shut Off Incoming Cold Water: Locate the cold water shutoff valve installed on the supply pipe entering the top of the tank (usually on the right side). Turn the quarter-turn ball valve lever 90 degrees, or turn the round gate wheel clockwise until tight.
• Relieve Internal Tank Pressure: Open the hot water side of a nearby sink faucet to break the vacuum seal, helping reduce pressure inside the water heater tank.

Pinpointing the Source: Top Connections, T&P Valve, or Bottom Tank Rupture

Not every puddle around a water heater means the unit is doomed for the scrapyard. Water travels downward along the steel jacket, meaning a simple, inexpensive fitting leak on top can mimic a catastrophic tank breach.

• Top Supply Connections (Repairable): Inspect the dielectric unions, brass nipples, and braided stainless flex lines where cold intake and hot outlet pipes join the tank. Loose joints or deteriorating rubber washers can be resealed with Teflon tape or replaced.

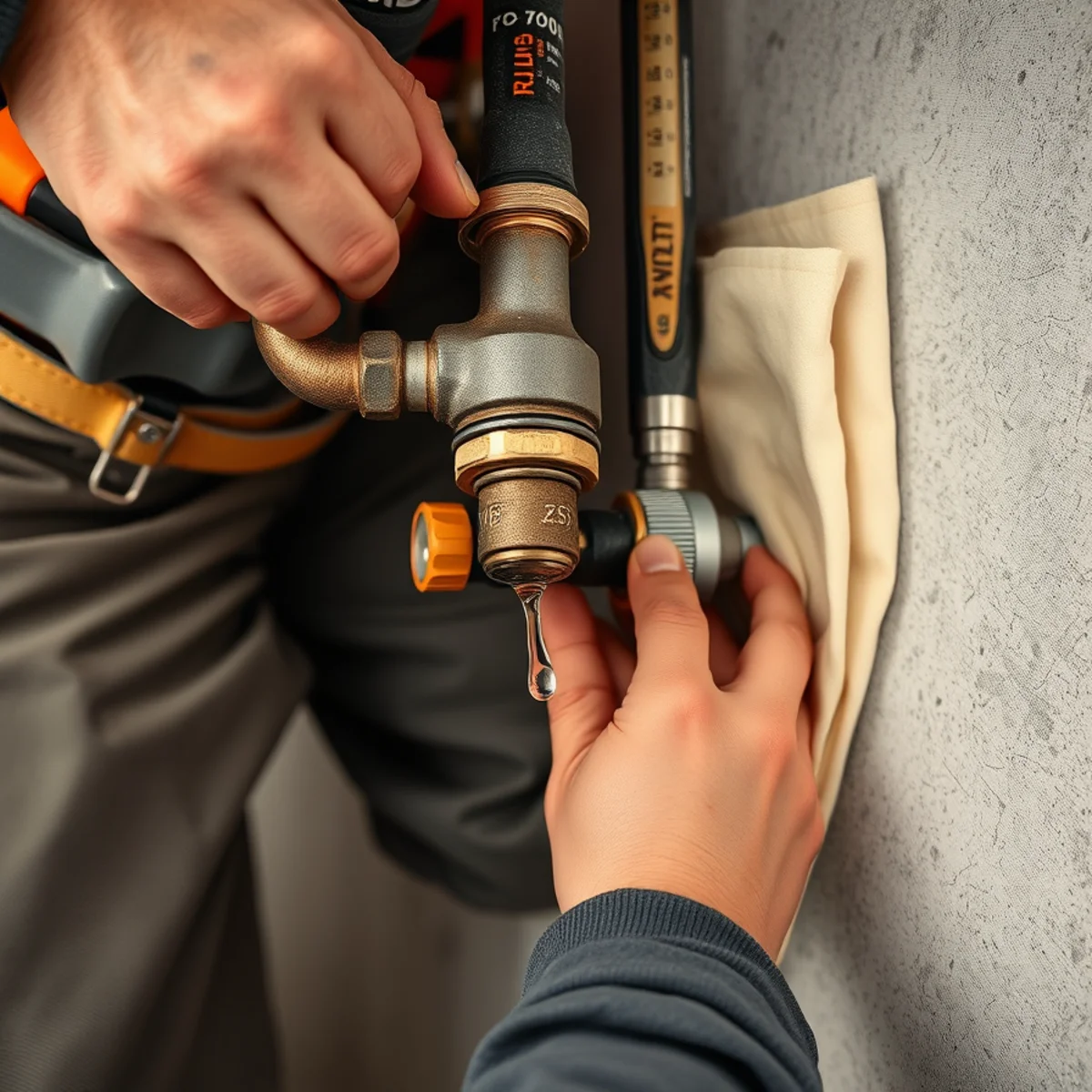

• Temperature & Pressure (T&P) Relief Valve (Repairable): Located on the top or upper side of the tank with a vertical copper or CPVC discharge pipe extending toward the floor. If water is dripping from the discharge pipe, the valve is either relieving excessive pressure (above 150 PSI or 210°F) or has failed from mineral scaling.
• Heating Element Gaskets (Electric Units — Repairable): On electric water heaters, remove the upper and lower metal access covers on the side of the tank (with power OFF) to check if water is weeping past the rubber heating element gaskets.

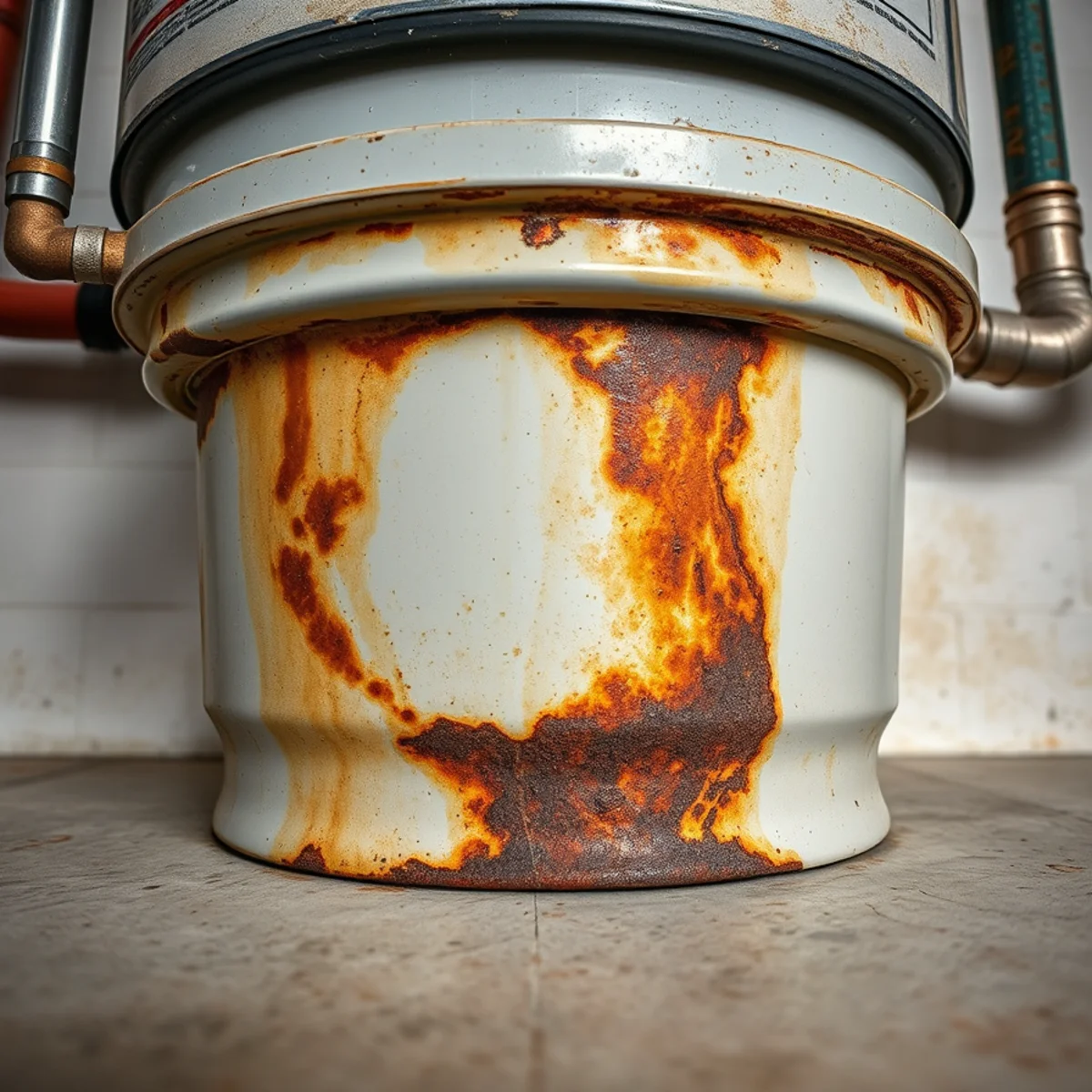

• Bottom Seam or Outer Jacket Leaking (Terminal Failure): If water is seeping out from under the bottom metal rim of the tank or weeping through the burner chamber, the internal glass-lined steel tank has rusted through. A breached tank cannot be patched, welded, or repaired—it must be replaced.

Safe Tank Draining Protocol: Emptying 50 Gallons Safely

If the tank is structurally compromised, draining the reservoir prevents 40 to 50 gallons of rust-colored water from ruining basement drywall, flooring, or stored belongings.

• Connect a Heavy-Duty Garden Hose: Screw a standard 3/4-inch garden hose firmly onto the lower brass or plastic drain valve located near the base of the water heater.
• Route Hose to Safe Discharge: Direct the opposite end of the hose to a nearby basement floor drain, utility sump pit, or outside away from home foundation walls.
• Open the Drain Valve: Use a flathead screwdriver or pliers to turn the drain valve counter-clockwise. Be prepared: water will initially discharge extremely hot.
• Break the Air Lock: Lift the small metal test lever on the upper T&P relief valve or open hot water faucets on upper floors to allow air into the tank, speeding drainage.
• Address Sediment Clogs: In Harrisonburg homes with heavy limestone scale, sediment frequently blocks the drain opening; gently pulsing water back into the drain valve with a garden hose can clear the clog.

The Shenandoah Valley Hard Water Factor: Karst Limestone & Tank Corrosion

Why do water heaters fail in Harrisonburg and Rockingham County significantly faster than national averages? The answer lies beneath our feet in the Valley's extensive karst limestone geology.

• Extreme Water Hardness (12 to 25 GPG): Our groundwater carries high concentrations of dissolved calcium carbonate and magnesium. When water is heated past 125°F, these minerals precipitate out of solution, settling into a dense layer of rock-like sediment at the bottom of the tank.
• Trapped Thermal Stress: In gas heaters, bottom sediment insulates water from the burner flame, forcing the steel bottom head to overheat, warp, and crack. In electric heaters, sediment buries lower heating elements, causing rapid burnout.
• Rapid Sacrificial Anode Rod Depletion: The magnesium or aluminum anode rod inside the tank is designed to corrode sacrificially to protect the steel tank. In our aggressive mineral-rich water, anode rods deplete in 3 to 4 years instead of 6 to 8 years, leaving bare steel exposed to corrosive water.
• Popping & Rumbling Warnings: If your water heater sounds like a boiling kettle or popping popcorn when heating, it indicates severe limestone scale buildup requiring immediate flushing.

Expert Insight: Repair vs. Replace Decision Matrix & Virginia Plumbing Codes

As a master plumber serving Harrisonburg for over 15 years, I walk homeowners through an honest assessment based on tank age, leak origin, and replacement return on investment.

• The 10-Year Rule: If your tank-style water heater is under 8 years old and the leak originates from a valve, nipple, or element gasket, professional repair is almost always the smart financial choice. If the tank is 10 to 12+ years old and leaking from the bottom, replacement is mandatory.
• Virginia USBC Code Requirements: Under the Virginia Uniform Statewide Building Code (USBC), all new water heater installations must include a thermal expansion tank (to absorb thermal pressure expansion in closed backflow-prevented systems) and a properly sized drain pan piped to an approved discharge.
• Permit & Inspection Peace of Mind: In Harrisonburg, water heater replacements require a plumbing trade permit through the Department of Community Development to ensure safe gas venting, combustion air, and pressure relief compliance.

Choosing Your Replacement: Bradford White Standard vs. High-Efficiency Tankless

Replacing a failed water heater is an opportunity to improve household energy efficiency and prevent future sediment failures.

• Bradford White Commercial-Grade Atmospheric Tanks: American-crafted Bradford White water heaters feature Hydrojet® total performance sediment reduction systems that swirl water to prevent limestone settling, offering superior longevity in Harrisonburg.
• Rinnai or Navien Tankless Systems: Tankless water heaters heat water on demand through commercial copper heat exchangers, eliminating the risk of a 50-gallon tank rupture and reducing annual water heating energy costs by up to 30%.
• Upfront Flat-Rate Estimates: Héctor Plumbing Solution provides transparent, guaranteed estimates covering removal, disposal of your old tank, new code-compliant expansion tanks, and master plumber installation.
